Larson Davis Cloud Connect Environmental Monitoring
Precision Meters Connected for Noise, Dust, and Vibration
Larson Davis Cloud Connect is the all-in-one solution for simplified environmental monitoring—no acoustic expertise needed. Monitor noise, dust, and vibration with plug-and-play setup and an intuitive web interface that keeps you informed every step of the way.
Access data from any device, anywhere. Get alerts and customizable exceedance alarms to act fast, reduce disruptions, and stay compliant. Built-in cloud-based reporting and data sharing makes collaboration easy. Backed by Larson Davis’ trusted legacy, Cloud Connect delivers professional-grade performance in a system that’s easy enough for anyone to use.
Map-based noise, dust, and vibration levels in Larson Davis Cloud Connect
Highlights
- Easy to Use – No expertise or complex setup required; just power on and go
- Real-Time Alerts – Stay informed via email or SMS when thresholds are exceeded

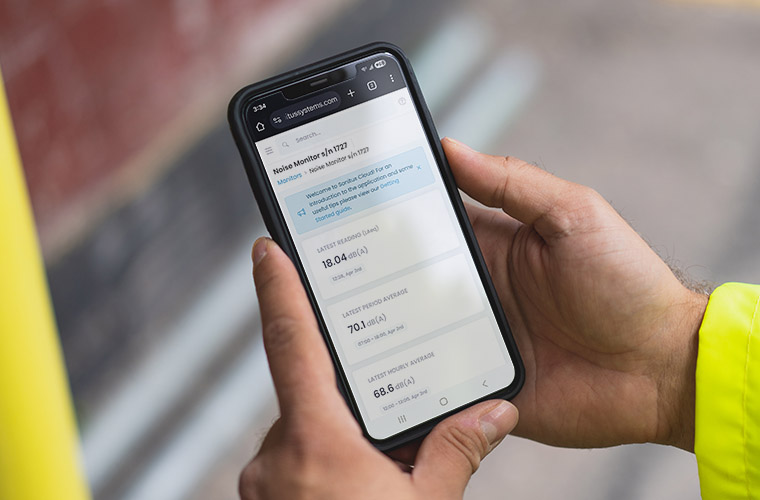

- Cloud Access Anywhere – View your results, reports, and exceedances from any device
- Ready to Deploy – Ships configured, calibrated, and ready for the field
- Built-In Compliance Tools – Automatically log, track, and report exceedances to stay within regulatory limits
- Low Maintenance – Rugged, all-weather systems designed for long-term field use
- Flexible Power Options – Works with standard line power or solar setups for any job site
Map-based noise, dust, and vibration levels in Larson Davis Cloud Connect
Ideal for project managers, site supervisors, or anyone overseeing:
Measurements
| Logging | 1, 5, 10, 15 and 30 minute logging intervals |
| Power Solutions | Mains, Battery, or Solar |
| Parameters | PM10, PM4, PM2.5, and PM1 |
| Certification | MCERTS certified for PM10 and PM2.5 |
| Method | Optical particle counter |
| Measurement Range | Up to 1500 µg/m |
| Particulate Range | 0.35 to 40 µm |
| Measurement Period | 1, 5, 10, 15, 20, 30, or 60 minutes; 24 hour averages online |
| Data Storage | 3 years on-board memory |
| Operating Temperature | -10 to 50 °C 14 to 122 °F |
| Humidity Range | 0 to 95% RH |
| Resolution | 24 bits |
| Sampling-rate | 500, 1000, 2000, 4000 samples per second |
| Internal Sensor Type | Velocity sensor with linearized frequency response A3HV 315/1 (triaxial) (according to DIN 45669) |
| Measurement Range | Full scale ± 5.3 in/s (± 135 mm/s) |
| Housing | Aluminum, (L x W x H) 6.8 x 5.3 x 3.25 in (173 x 135 x 83 mm) |
| Weight | 5.1 lb |
| Supply Voltage | 5V DC through microUSB connector |
| Battery | Internal, compact high density Lithium battery, UN38.3 & IEC62133 certified |
| Autonomy | 6 months on internal battery, typical (based on 10 events per day, 1000sps, continuous monitoring) |
| Solar Panel | 500mW solar panel for outdoor usage embedded on ROCK housing |
| Mobile Network | Multi-band LTE Cat M1 and LTE NB-IoT, fallback 2G |
| SIM Card | Embedded SIM provided |
Sound level chart showing a full day of measurements from a single monitor:
Why LD Cloud Connect for Noise, Dust, and Vibration Monitoring?
- Get actionable insights fast: Set your limits and be notified instantly if those limits are breached
- See everything at once: Use our interactive map and calendar views to review levels over time
- Empower your team: Securely share reports and data with stakeholders or regulators
- Safely archive data: Access data even after subscription ends
Compatible Meters
LD Cloud Connect is a configurable system that allows you to mix and match noise, dust, and vibration monitoring instruments to meet your specific monitoring and compliance needs. All instruments seamlessly send data to the LD Cloud Connect Software for secure information sharing with stakeholders. Want to learn more? View available meters below, or contact us using the Contact an Expert form, and we'll be happy to discuss.
Compatible Meters
| Meter Type | Model | Description |
|---|---|---|
| Noise Meter | EMS010 | Near Class 1 Basic Sound Level Monitor |
| Noise Meter | EMS011 | Class 1 Sound Level Meter |
| Noise Meter | EMS012 | Class 1 Advanced Sound Level Meter |
| Dust Meter | EMS-DUST | Automated Particulate Monitor |
| Vibration Meter | EMS-ROCK | Autonomous Vibration Monitor |
Noise Monitoring Specifications
| EMS010 | EMS011 | EMS012 | |
|---|---|---|---|
| Dynamic Range | 17 - 121 dB(A) | 17 - 140 dB(A) | 20 - 140 dB(A) |
| Logging | 1, 5, 10, 15 and 30 minute | 1, 5, 10, 15 and 30 minute | 1, 5, 10, 15 and 30 minute |
| Power Solutions | Mains, Battery, or Solar | Mains, Battery, or Solar | Mains, Battery, or Solar |
| Communication | SIM and Cellular Data Included | SIM and Cellular Data Included | User Supplied SIM |
Dust Monitoring Specifications:
Particulate Measurement Specifications
| Parameters | PM10, PM4, PM2.5, and PM1 |
| Certification | MCERTS certified for PM10 and PM2.5 |
| Method | Optical particle counter |
| Measurement Range | Up to 1500 µg/m |
| Particulate Range | 0.35 to 40 µm |
Logging Specifications
| Measurement Period | 1, 5, 10, 15, 20, 30, or 60 minutes; 24 hour averages online |
| Data Storage | 3 years on-board memory |
Physical Specifications
| Operating Temperature | -10 to 50 °C (14 to 122 °F) |
| Humidity Range | 0 to 95% RH |
Note: Specifications and features are subject to change without notice as we continue to improve our products. Contact our team with any questions.
